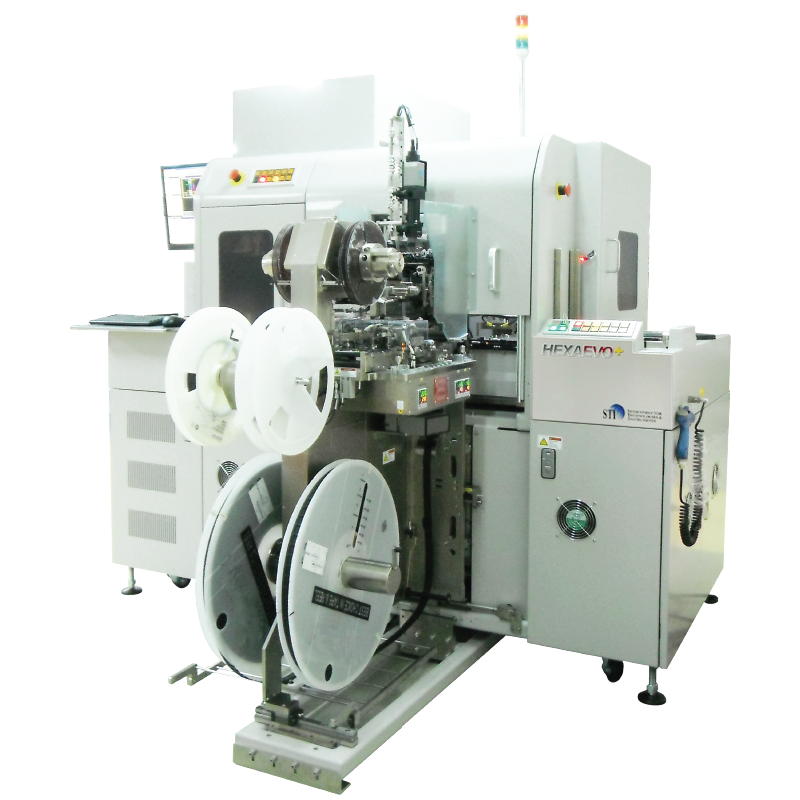

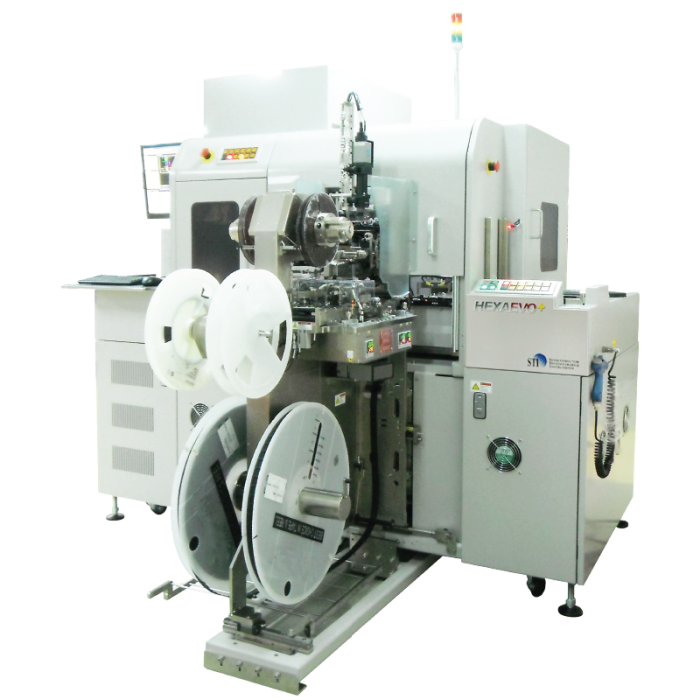

Hexa Evo / Evo+

2D/3D High Speed Scanner for Large Form Factor Packages

The Hexa is the latest addition to the highly successful Integra Hexa family. It provides the most comprehensive quality assurance solution for detection of backend process induced defects for all ball array, peripheral leaded/leadless and large form factor packages.

The highly modular design concept allows flexibility for various options like – Dual taper, auxiliary tray input, top and bottom surface inspection, side surface inspection etc. Simple and repeatable conversions also make the Hexa Evo perfectly suited for customers with high mix, small lot size production environment.

STI’s proprietary vision solution encompasses pioneering technology in areas such as optics design, lighting control, and software algorithm. Coupled with advanced automation features, the Hexa Evo offers a diverse menu of inspection and output options configurable to match all package requirements.

  • Top Package Visual Inspect (PVI) with orientation checking and correction
  • Bottom PVI
  • 3D On-The-Fly Lead / Ball Inspection
  • Symbol Inspection
  • In-pocket Inspection
  • Dual Tape & Reel
